SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

YINGDA TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

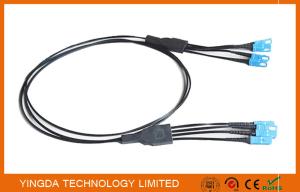

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

Brand Name : YINGDA

Model Number : FHPC-SCU-04-SFS-A1B-03

Certification : ISO,SGS,ROHS

Place of Origin : china

MOQ : 100PCS

Price : Negotiable

Packaging Details : 1 piece / bag

Application : FTTH outdoor wiring

Connector : SC / UPC

fiber count : 4core

fiber type : G657A1

Cable sheath : LSZH

Cable length : 3 meters

Cable color : black / white

insertion loss : < 0.3dB

Cable strength member : Steel wire

drop cable diameter : 2.0*5.0 mm

Contact Now

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP are placed at the

two sides. A steel wire as the additional strength member is also applied,then the cable is completed with

a black or color LSZH Sheath.

Features

  1. Special high bending radius optical fiber, provides wider bandwidth, enhance the network
  2. transmission performance;
  3. Two parallel FRP or metallic strength member so that the cable has good compression
  4. performance, protect the fiber;
  5. Simple structure, light weight, strong practicability;
  6. The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
  7. Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
  8. environmental protection.
  9. Can be matched with a plurality of field connector, can be terminated at site.
  10. Due to its soft and light, it is widely used in access network; so it is also called indoor access
  11. network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.

Application

  • For indoor /outdoor wiring, terminal user directly use cable;
  • Building introducing (drop) cable;
  • FTTH indoor outdoor distribution

Implementation standards

  • YD/T1997-2009 access network butterfly optical drop cable

FTTH Drop Cable Figure-8 Indoor FTTH Drop Cable Self-supporting Outdoor

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout KitsSC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

Optical Characteristics:

Fiber Sort

Multimode

G.651

A1a:50/125

Graded-index fiber

A1b:62.5/125

Singlemode

G.652(A,B,C)

B1.1:Conventional fiber

G.652D

B2: Zero dispersion shifted

G.655

B1.2 :Cut-off wavelength shifted

G.657(A1,A2 ,B3)

B4: Main technical data for positive
dispersion shifted single-mode fiber

Order information

FHPC-XXX-XX-XXX-XXX-XX

1 - 2 - 3 4 - 5 6 - 7

FHPC

Connector

type

Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2

W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

More photos

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout KitsSC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits
