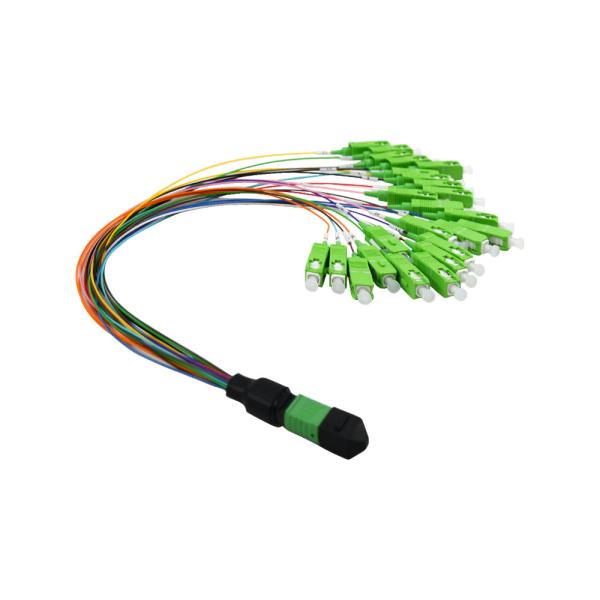

SC Hydra 12 Strand Fiber Cable Assembly / MTP MPO Patch Cord For FTTX

Brand Name : YINGDA

Model Number : MPOm-12SC

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 100 pcs

Price : negotiable

Payment Terms : Western Union, T/T

Supply Ability : 10,000 pcs per month

Delivery Time : 7days after payment

Packaging Details : 1 pc/ box, 200 pcs/carton box

connector : MPO male

fiber type : OM2

fiber count : 12 Cores

installation place : cassette or panel

application : Data center, High density

Cable length : 1meter

Cable diameter : 0.9mm

Contact Now


12 Strands MPO SC Hydra Cable Assembly,12 Fibers MTP Patch Cord For FTTX

MTP MPO cable assembly supports higher speed Ethernet and Fiber Channel applications
(OM3, OM4 and OS1/OS2 fibers), and legacy multimode fiber (OM1 or OM2).
This item is MPO Male (with guide pins) assembled with 0.9mm cable to single-fiber connectors.
All types of single-fiber connector interface available for choices (SC, LC, E2000, MTRJ, etc.)

Features

  1. High Performance in IL & RL
  2. Available in 8,12 fiber
  3. Precise dimension
  4. 100% in-house tested


Application

  • Installing inside MPO fiber cassette module


Optical properties

Item

Unit

Parameters

Connector

--

SM standard
ferrule

SM elite low
loss ferrule

MM standard
ferrule

MM elite low
loss ferrule

IL

Typical

(dB)

0.35

0.20

0.35

0.20

Maximun

(dB)

0.75

0.35

0.60

0.35

RL

(dB)

≥60 for APC (8 Angle Polish)

≥20 for PC

(dB)

≥50 for PC

--

Female / male

(dB)

Male: With Pins, Female: Without Pins

Tensile strength

(dB)

≤0.3 (Max 66N)

Vibration

(dB)

≤0.3 (10 ~ 55Hz)

Temperature cycle

(dB)

≤0.3 (-40 ~ 75℃, 21Cycles)


End face parameters

Item

Unit

Parameters

SM

MM

X curvature radius

(mm)

Min 2000

Y curvature radius

(mm)

Min 5

Fiber height

(nm)

1000 ~ 3500

overall optical height difference

(nm)

MAX: 500

adjacent fiber height difference

(nm)

MAX: 300

X axis angle

( ° )

-0.2 ~ 0.2

Y axis angle

( ° )

PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2

-0.2 ~ 0.2

optical fiber depression

(nm)

N/A

-100 ~ 200



8-Fibers MPO / Male Connector assembly with 8PCS SC connectors structure
SC Hydra 12 Strand Fiber Cable Assembly / MTP MPO Patch Cord For FTTX
Order information

Item

Unit

Parameters

①Connector type 1#

--

MPO-female* , MPO-male

② Endface 1#

--

PC , APC

③ Fiber count

--

2 , 4 , 8 , 12 & 24 MT Fiber

④Connector type 2#

--

MPO-female* , MPO-male , FC , SC , ST , MU , LC , E2000

⑤ Endface 2#

--

PC , UPC , APC

⑥ Fiber mode

--

SM( OS1 , OS2 ) , MM( OM1 , OM2 , OM3 , OM4 )

⑦ Cable outer diameter

(mm)

Φ2 , Φ3 , Φ4

⑧ Length

( M )

L= 1 , 2 , 3 , 4 ...

⑨ Pigtail Length

( M )

L1=0.5 , 0.6 , 1.0

⑩ Cable type

--

RJ:Jacket Ribbon Cable , RB:Bare Ribbon Cable,
MIC:250um mini round cable


※ For female MPO Connector, female can be committed in the ordering information
