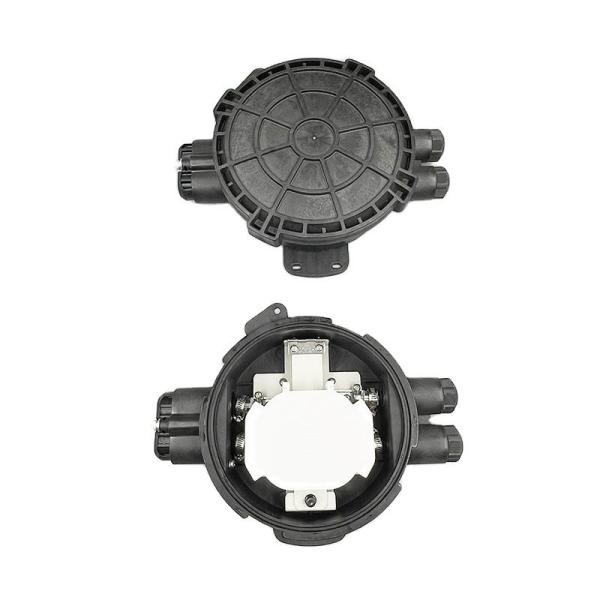

36Cores Fiber Optic Closure Machinery Seal
Optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways:direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.
36F Optical Fiber Joint Enclosure Features
- The closure casing is made of quality engineering PP plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
- The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
- The closure is of small volume, big capacity and convenient maintenance.
- The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
| MODEL | GJS-F004 |
| Dimension (L*W*D) | 295×220×90mm |
| Max capacity | 36 Cores |
| Splice tray qty | 3 pcs |
| Splice tray capacity | 12 fibers |
| Cable ports | 2 cable glands |
| Cable diameter | Φ17.5mm |
| Weight | 1.55kg |

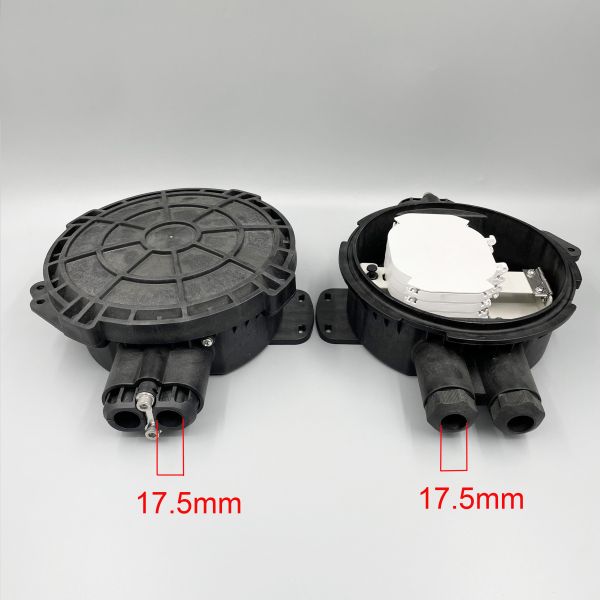

There are 2 cable glands with grommets inside, better protection, each port can hold maximum cable diameter:φ17.5mm
-----------------------------------------------------------------------------------------------------------------------------------------------------
Though ftth mini closure is small size, but large capacity to 96cores with 4trays overlapped, protection sleeve slots to 24pcs max.
For better protection, there can be velcro tape to make them together before delivery.
-----------------------------------------------------------------------------------------------------------------------------------------------------
Main component
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Internal diameter: 205x146 (mm) |
| 2 | FOSC bottom | 1 piece | Fixing reinforced core, fiber cable and FOST | Internal diameter: 205x146 (mm) |
| 3 | Fiber optic splice tray (FOST) | max. 4 pieces (bunchy) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: Bunchy:6,12,24(cores) |
| 4 | Integrated seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
| 5 | Port plug | 2 pieces | Sealing empty ports | |
| 6 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection. | Configuration as per requirement. |
Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Heat shrinkable protective sleeve | | Protecting fiber splices | Configuration as per capacity |
| 2 | Nylon tie | | Fixing fiber with protective coat | Configuration as per capacity |
| 3 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
| 4 | Hanging hook | 1 set | For aerial use | Configuration as per requirement |
| 5 | Fixing device | 1 set | | Configuration as per requirement |
| 6 | Earthing wire | 1 piece | Putting through between earthing devices | To put through while required |
| 7 | Abrasive cloth | 1 piece | Scratching fiber cable | |
| 8 | Labeling paper | 1 piece | Labeling fiber | |
| 9 | Special wrench | 1 piece | Fixing octagonal nut (plastic) | |
| 10 | Buffer tube | To be decided by customers | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
| 11 | Desiccant | 1 bag | Put into FOSC before sealing for desiccant air. | |
Application
- Aerial, underground, pipeline, handhole.
