1x16 Fiber Optic Splitter Box 2in 2out Inline Splice Closure 72Cores With Bracket PC
GJS-2020 Optical Distribution Box (ODB)is high-density 2in 2out fiber box solution. Designing with a compact size of 340x220x100mm, the cabinet accommodates 1x2,1x4,1x8 and 1x16 splitters. The 4 ports are sized for main cable from 9 to 16mm in diameter, along with 16pcs 3mm cables.
Features
Box is made of high impact engineering plastic PC material, longer life
Small size, large capacity, fusion can up to 144fibers
Each tray is made of brand new ABS material, high quality and performance
Full list of accessories, more convenient and fast for operation
Snap with brackets unique design, humanity design
Suitable for outdoor harsh environments like aermial mount, pole mount a nd wall mount
Can use as a splitter box for FTTH drop cable or only splice closure for fusion splice.

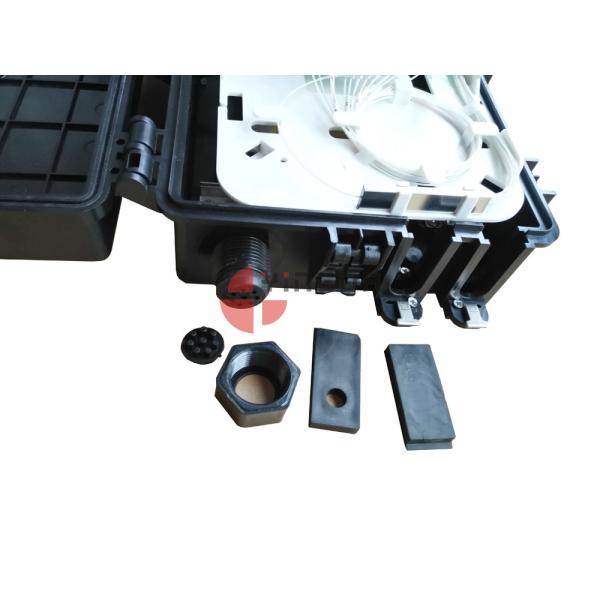

Uncut cable pass through 2in 2out, drop cable outputs have rubber blocks with holes for branching
IP65 protetion class
Accessory Kits:
| Accessory | Quantity | Accessory | Quantity |
| Cleaning tissues | 1bag | Number labels | 2pcs |
| Hose clamp | 8pcs | Drop cable sleas | 2sets |
| Main Cable Seals | 3pcs | Aerial mount kits(bracket)with M5x12 stainless bolts) | 1set |
| Nylon Tie-wrap | 8pcs | M6x10 Stainless Bolts | 2pcs |
| Shrinkable sleeves | on actual fiber cores | Fiber Melting Protection Tube | 3pcs |
Specification
| Model | GJS-2020 |
| Dimension | 340x220x100mm |
| Max fusion capacity | 72cores, with3pcs 24fiber tray |
| Cable ports | 2in 2out |
| Drop cable ports | Each 1round ports at both ends which can hold 16pcs 2x3mm drop cable |
| Max. Cable dimaeter | 9-16mm |
| Max. Splitter | 1x2,1x4,1x8,1x18,2x2, ... 2x16 plc splitter steel tube type |
| Max. Adaper | 18pcs SC simplex adapter |
| Material | PC |

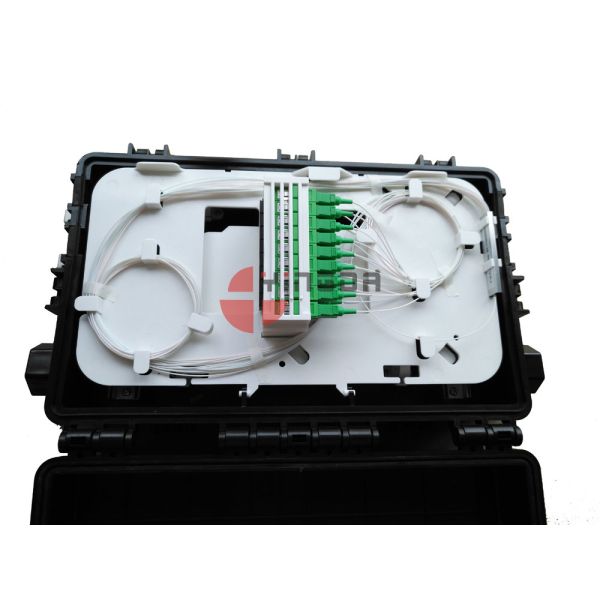

Adapter plate is clip on the white plastic plate fiber route is reasonable and good bend radius protection
18pcs SC adapter in 2lines,special design, plastic plate is flip design, and be taken off if no adapters

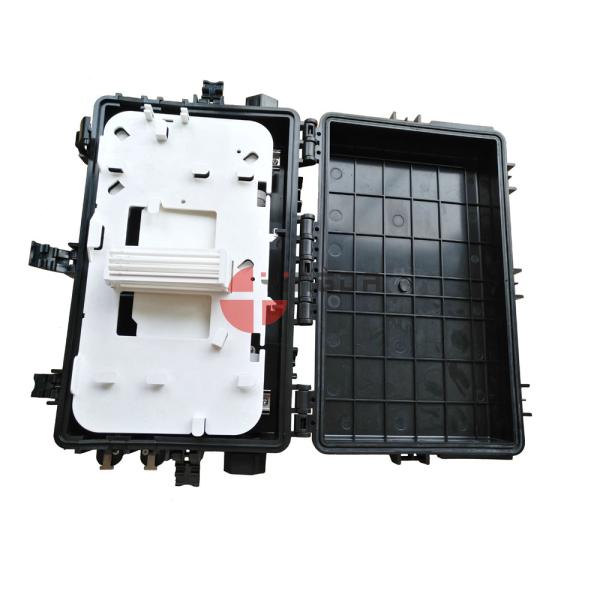

stable but without screws total enclosed box with brackets and sealings, new design
box: PC material,splice tray: ABS 2in 2out for uncut distribution cable pass through the

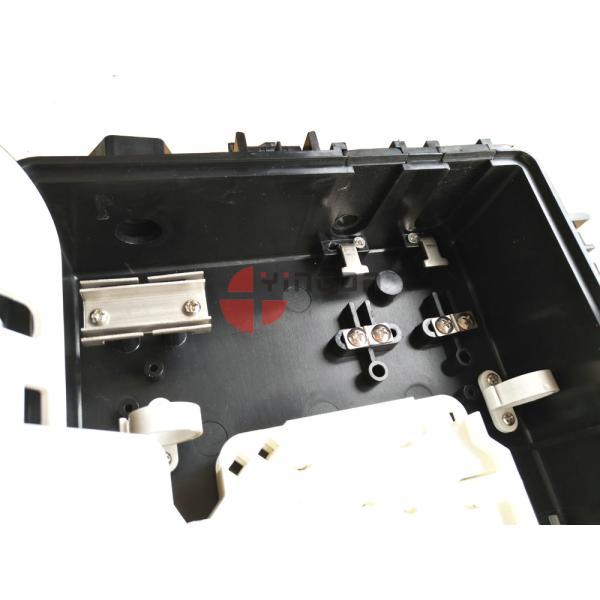

Metal parts is stainless steel for longer life use box, round ports at both sides for 16pcs FTTH drop
there is fiber or cable fix rods at reasonable place cable 2x3mm outputs maximum with sealing blocks
