Description:
Wedge Tension clamp is designed for supporting insulated aerial bundle cable of the LV distribution system at terminal section and at acute angle poles. The wedge can be self-adjusting and the aerial cable are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the cable into the clamp. The whole assembly has no loose parts and it does not require special tool to install it. The clamp standard is NFC 33-042.
Clamp Structure
- An open body
- Wedge consisting of two insulating plastics (inserts) ensuring the clamping of the messenger cable without damaging cable insulation.
- An unloosable stainless steel flexible wire rope equipped with a movable thimble and two sleeves compressed at the end of the wire rope to be locked at the clamp body.
Clamp material
The body, wedge and thimble of the clamps are made of high strength reinforced thermoplastic, UV radiant material which was very high mechanical and climatic properties.The pull hook is made from stainless steel.
Features:
1.Customized: Support OEM(Length,Material, Diameter)
2. Ease Of Use: Easy
3. Color: Silver
4. Includes: Tools And Accessories
5. Durability: High
6.Suitable for cable 4-22mm
Product Details:
- Steel Wire. Support customize wire length, material, diameter
- Plastic hook. -Avoid wire rope falling out.
-Can be installed on the outlet slot plate
-The standard destructive force is greater than the product itself
3. Made of PA66 Material. New genuine material with high strength ,good toughness and durability.
4. Plastic Buckle. Secure the clamp core to prevent it from coming out
5. Printing. - Can print according to customer needs. - The product itself with the production data, strong traceability.
Technical Parameters:
Specification
| Model | PA0422 |
| Dimension | 210mm*60*56mm |
| Breaking load | 2000N |
| Cable diameter | 4-22mm |
| Material | PA66+Stainless steel |
Application
YINGDA Cable Installation Kits are suitable for a wide range of applications, including but not limited to:
- Aerial Strain Cable Anchor Clamp
- Cable Fitting
- Dead End Clamp
- Suspension Clamp
- Pole Line Hardware
These kits are ideal for use in both residential and commercial settings, providing a reliable and efficient solution for cable installation needs.

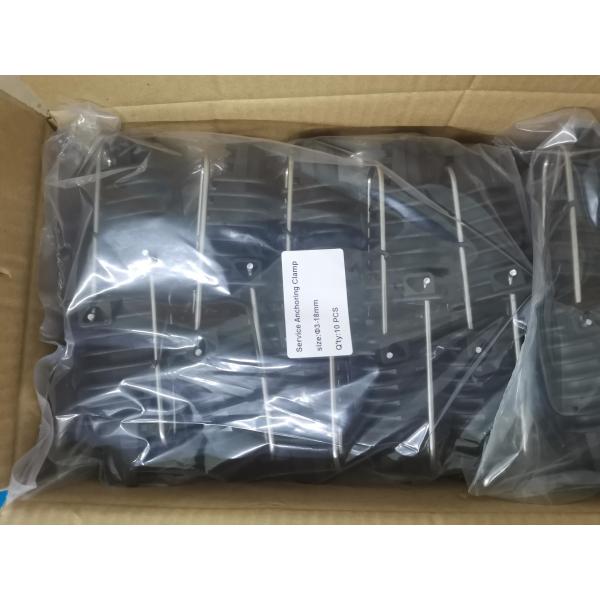

Packing information:
| QTY/CTN | CTN SIZE | G.W./CTN |
| 100pcs | 42*28*33cm | 15.4kg |
